Creative Piping Solutions is a trusted manufacturer and supplier of high-quality pipe fittings and flanges, catering to diverse industries worldwide. With a focus on precision engineering and superior materials, the company offers a wide range of standard and custom solutions, including elbows, tees, reducers, flanges, and more. Known for its commitment to quality, timely delivery, and customer satisfaction, Creative Piping is a reliable partner for all your piping needs.

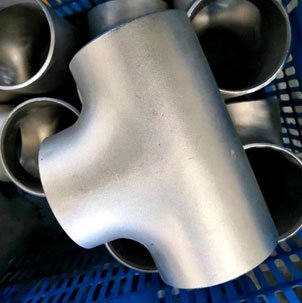

Buttweld pipe fittings are essential components used to connect pipes and change the direction, branch, or diameter of piping systems. Made from high-quality materials, these fittings include elbows, tees, reducers, and caps, and are welded directly to the pipe for a strong, leak-proof connection. Known for their durability, smooth inner surface, and ability to withstand high pressure and temperature, buttweld fittings are widely used in industries like oil & gas, petrochemical, power, and water treatment.
We stock Seamless (SMLS) pipe fittings from 1/2" to 24" and Buttweld (BW) WP-WX fittings from 8" to 48". Wall thicknesses range from Schedule 10s to Schedule XXS / 160, covering a wide variety of applications.
ASME/ANSI B16.9, B16.28, MSS-SP-43, BS4504, BS4504, BS10
Seamless Fittings: 1/2" - 24", Welded Fittings: 4" - 72"
Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS
Carbon Steel, Nickel Alloy, Inconel, Monel, Hastelloy, Super Duplex
| Nom, Pipe Size | Depth of Sock, Min | Sock, Bore Diameter B | Bore Diameter of Fitting D | Wall Thickness Minimum | entre to Bottom of Socket | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3000# | 6000# | 90º Elbow, Tee & Crosses | 45º Elbow | |||||||||
| A | A | |||||||||||
| 3000# | 6000# | Sock, C | Body G | Sock C | Body G | 3000# | 6000# | 3000# | 6000# | |||
| 1/8” | 3/8 | .420
.430 |
.254
.284 |
.141 | .125 | .095 | .135 | .124 | 7/16 | 7/16 | 5/16 | 5/16 |
| 1/4 | 3/8 | .555
.565 |
.349
.379 |
.235 | .130 | .119 | .158 | .145 | 7/16 | 17/32 | 5/16 | 5/16 |
| 3/8 | 3/8 | .690
.700 |
.478
.508 |
.344 | .138 | .126 | .172 | .158 | 17/32 | 5/8 | 5/16 | 7/16 |
| 1/2 | 3/8 | .855
.865 |
.607
.637 |
.451 | .161 | .147 | .204 | .188 | 5/8 | 3/4 | 7/16 | 1/2 |
| 3/4 | 1/2 | 1.065
1.075 |
.809
.839 |
.599 | .168 | .154 | .238 | .219 | 3/4 | 7/8 | 1/2 | 9/16 |
| 1 | 1/2 | 1.330
1.340 |
1.034
1.064 |
.800 | .196 | .179 | .273 | .250 | 7/8 | 1-1/16 | 9/16 | 11/16 |
| 1-1/4 | 1/2 | 1.675
1.685 |
1.365
1.395 |
1.145 | .208 | .191 | .273 | .250 | 1-1/16 | 1-1/4 | 11/16 | 13/16 |
| 1-1/2 | 1/2 | 1.915
1.925 |
1.595
1.625 |
1.323 | .218 | .200 | .307 | .281 | 1-1/4 | 1-1/2 | 13/16 | 1 |
| 2 | 5/8 | 2.406
2.416 |
2.052
2.082 |
1.674 | .238 | .218 | .374 | .344 | 1-1/2 | 1-5/8 | 1 | 1-1/8 |
| 2-1/2 | 5/8 | 2.906
2.921 |
2.439
2.499 |
.301 | .276 | .375 | 1-5/8 | 1-1/8 | ||||
| 3 | 5/8 | 3.535
3.550 |
3.038
3.098 |
.327 | .300 | .438 | 2-1/4 | 1-1/4 | ||||
| 4 | 3/4 | 4.545
4.560 |
3.996
4.055 |
.368 | .337 | .531 | 2-5/8 | 1-5/8 | ||||
CPS offers an extensive selection of pipe fittings and flanges, available in a wide variety of materials such as Stainless Steel, Carbon Steel, Alloy Steel, and High Nickel Alloys—ensuring quality solutions for every industry requirement.
